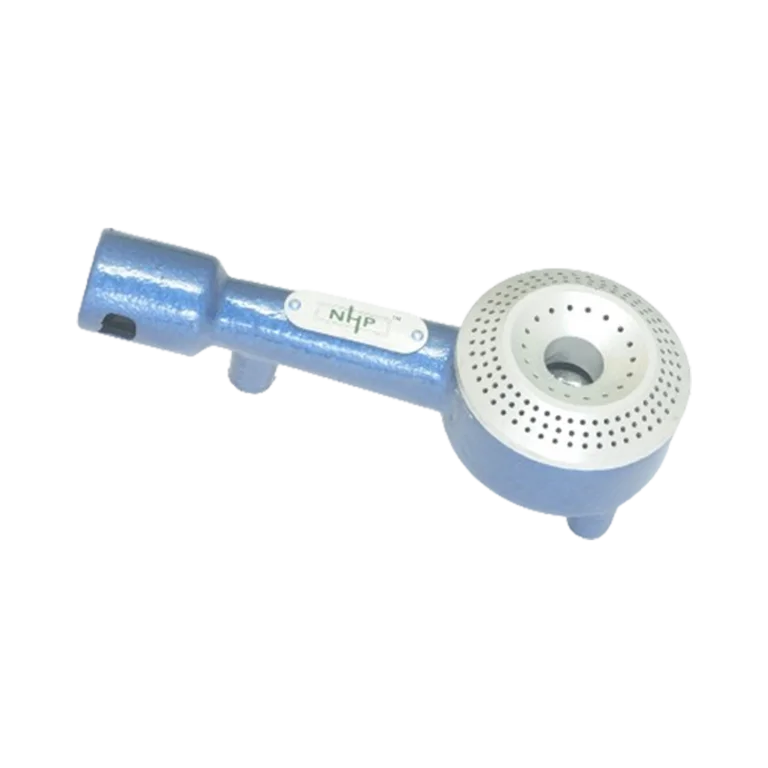

M-1M BOTTOM W/O LEG BURNER

M-1M BOTTOM W/O LEG BURNER

Categories Bottom Leg Burner, LPG Burners, LPG Burners & Components

Additional information

These burners are recommended to be used at a pressure of 0.3 kg/cm² (4.5 PSIG), however, this may be varied by ± 25% the heat output being varied accordingly.

Additional information

Model Number	M-1
Product Type	Medium
Material	CAST IRON
Head Diameter	80	MM	3.100	INCH
Total Length	200	MM	7.900	INCH
Optimum Working Pressure	0.3	KG/CM3	4.5	PSIG
Consumption Per Hour	0.2	KGS	0.4	LBS
Rated Heat Output	2,400	KCAL/HR	9,500	BTU/HR
Gas	LPG / NATURAL GAS
