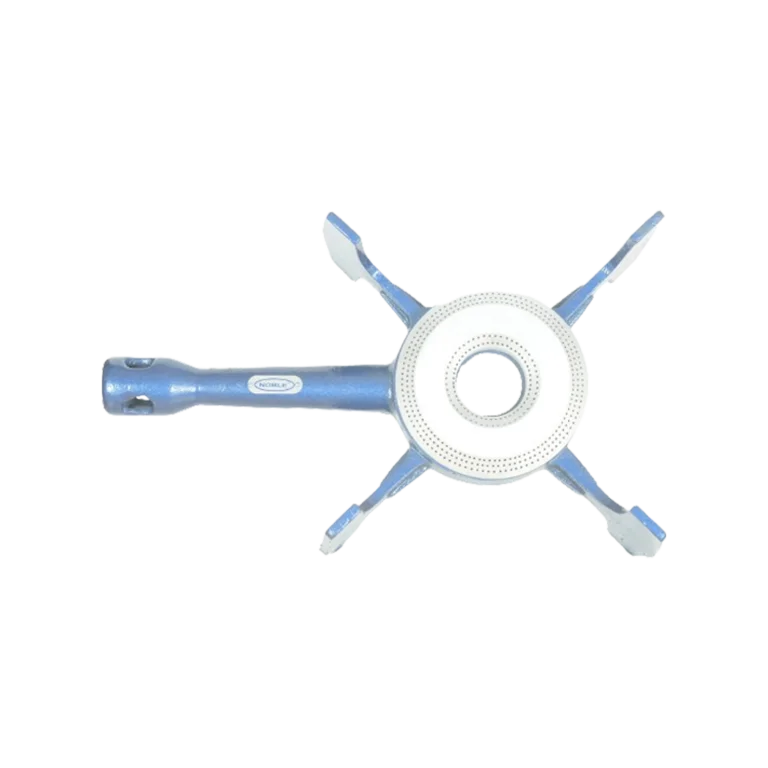

GIANT JUMBO BOTTOM CANTEEN BURNER

GIANT JUMBO BOTTOM CANTEEN BURNER

Categories Canteen Burner, LPG Burners, LPG Burners & Components

Additional information

These burners are recommended to be used at a pressure of 0.3 kg/cm² (4.5 PSIG), however, this may be varied by ± 25% the heat output being varied accordingly.

Additional information

Model Number	GAINT JUMBO BOTTOM
Product Type	With Legs
Material	CAST IRON
Head Diameter	300	MM	12.000	INCH
Total Length	800	MM	31.500	INCH
Optimum Working Pressure	0.3	KG/CM3	4.5	PSIG
Consumption Per Hour	2.3	KGS	5.0	LBS
Rated Heat Output	25,000	KCAL/HR	99,200	BTU/HR
Gas	LPG / NATURAL GAS
