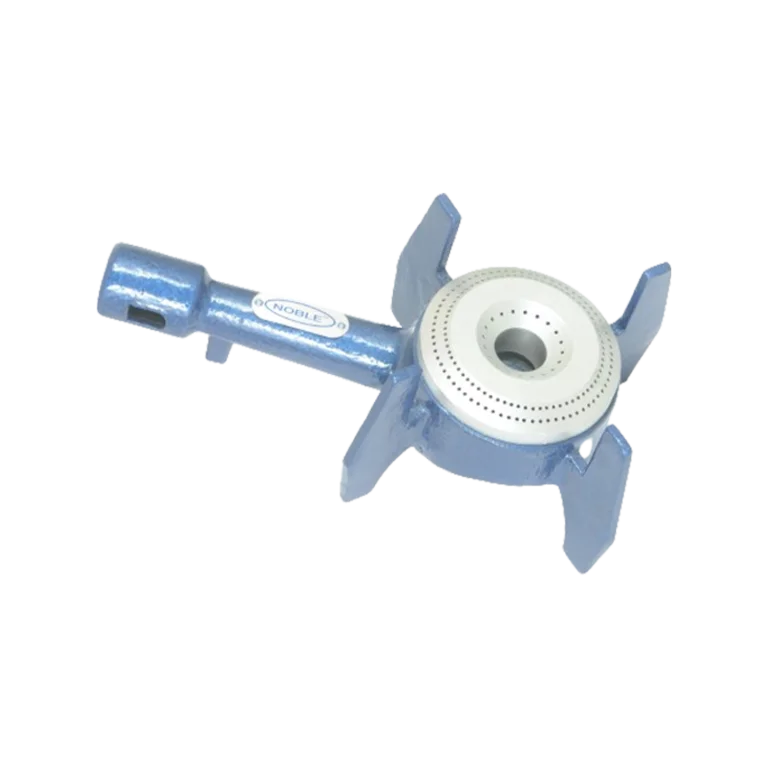

MINI BOTTOM CANTEEN BURNER

MINI BOTTOM CANTEEN BURNER

Categories Canteen Burner, LPG Burners, LPG Burners & Components

Additional information

These burners are recommended to be used at a pressure of 0.3 kg/cm² (4.5 PSIG), however, this may be varied by ± 25% the heat output being varied accordingly.

Additional information

Model Number	MINI BOTTOM
Product Type	With Legs
Material	CAST IRON
Head Diameter	100	MM	3.950	INCH
Total Length	260	MM	10.250	INCH
Optimum Working Pressure	0.3	KG/CM3	4.5	PSIG
Consumption Per Hour	0.3	KGS	0.65	LBS
Rated Heat Output	3,700	KCAL/HR	15,000	BTU/HR
Gas	LPG / NATURAL GAS
