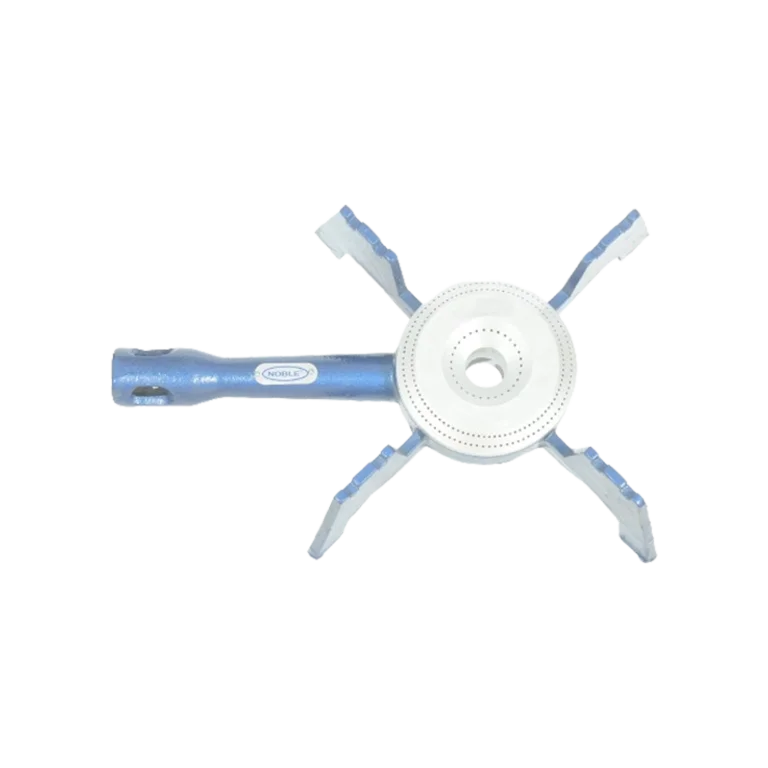

DELUXE BOTTOM CANTEEN BURNER

DELUXE BOTTOM CANTEEN BURNER

Categories Canteen Burner, LPG Burners, LPG Burners & Components

Additional information

These burners are recommended to be used at a pressure of 0.3 kg/cm² (4.5 PSIG), however, this may be varied by ± 25% the heat output being varied accordingly.

Additional information

Model Number	DELUX BOTTOM
Product Type	With Legs
Material	CAST IRON
Head Diameter	140	MM	5.500	INCH
Total Length	420	MM	16.500	INCH
Optimum Working Pressure	0.3	KG/CM3	4.5	PSIG
Consumption Per Hour	1.180	KGS	2.6	LBS
Rated Heat Output	12,900	KCAL/HR	51,200	BTU/HR
Gas	LPG / NATURAL GAS
