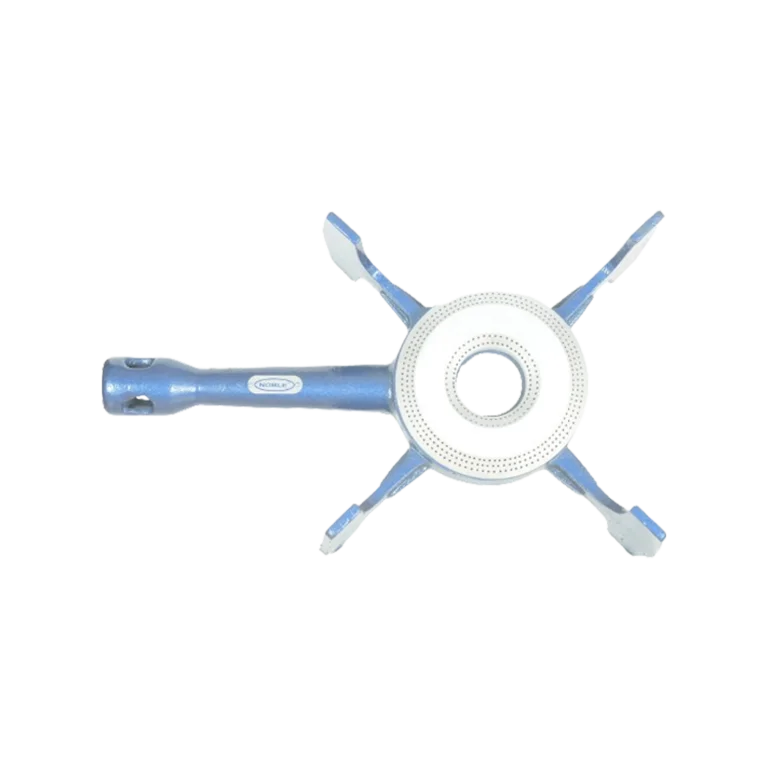

JUMBO BOTTOM CANTEEN BURNER

JUMBO BOTTOM CANTEEN BURNER

Categories Canteen Burner, LPG Burners, LPG Burners & Components

Additional information

These burners are recommended to be used at a pressure of 0.3 kg/cm² (4.5 PSIG), however, this may be varied by ± 25% the heat output being varied accordingly.

Additional information

Model Number	JUMBO BOTTOM
Product Type	With Legs
Material	CAST IRON
Head Diameter	180	MM	7.000	INCH
Total Length	500	MM	19.700	INCH
Optimum Working Pressure	0.3	KG/CM3	4.5	PSIG
Consumption Per Hour	1.925	KGS	4.2	LBS
Rated Heat Output	21,000	KCAL/HR	83,200	BTU/HR
Gas	LPG / NATURAL GAS

Related Products

G – 8 BURNER

G – Burner, LPG Burners, LPG Burners & Components

T- 22 S BURNER

LPG Burners, LPG Burners & Components, T – Burner

T – 65 S BURNER

LPG Burners, LPG Burners & Components, T – Burner

M – 78 BURNER

LPG Burners, LPG Burners & Components, M – Burner

M-1H BOTTOM W/O LEG BURNER

Bottom Leg Burner, LPG Burners, LPG Burners & Components

M-3H BOTTOM W/O LEG BURNER

Bottom Leg Burner, LPG Burners, LPG Burners & Components

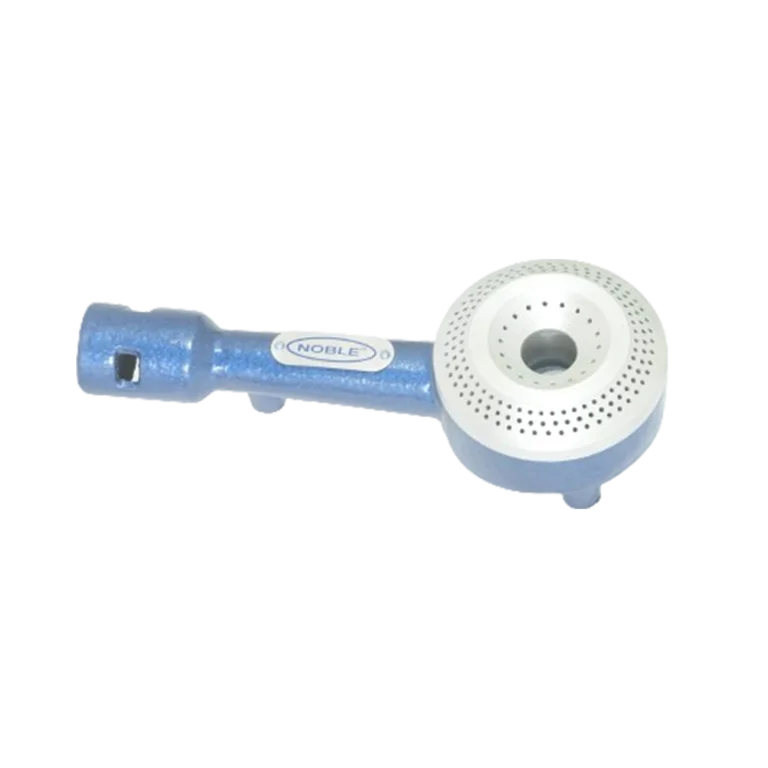

M-2H BOTTOM W/O LEG BURNER
