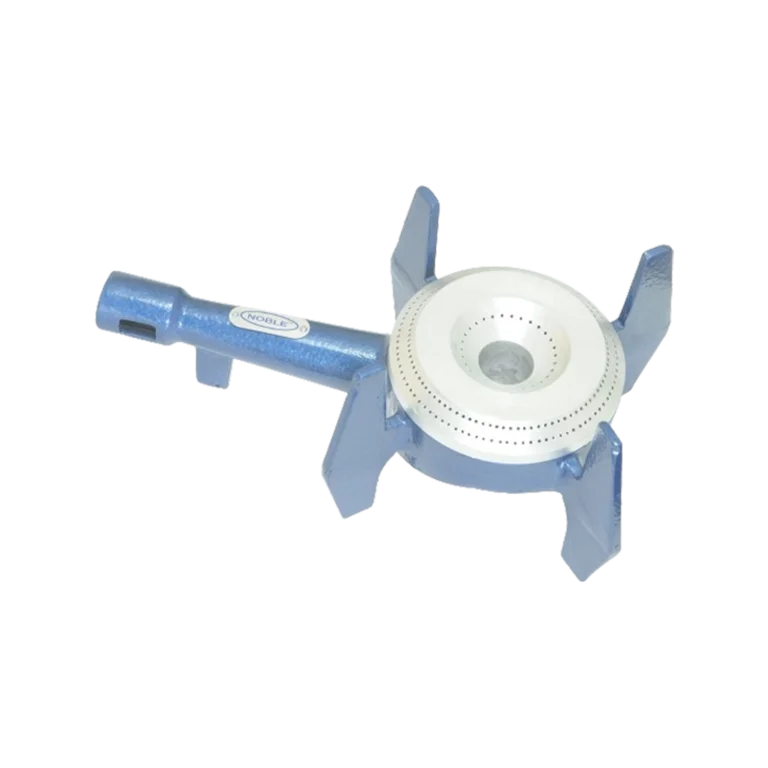

CANTEEN BURNER- SUPER BOTTOM

CANTEEN BURNER- SUPER BOTTOM

Categories LPG Burners, LPG Burners & Components

Additional information

These burners are recommended to be used at a pressure of 0.3 kg/cm² (4.5 PSIG), however, this may be varied by ± 25% the heat output being varied accordingly.

Additional information

Model Number	SUPER BOTTOM
Product Type	With Legs
Material	CAST IRON
Head Diameter	140	MM	5.500	INCH
Total Length	325	MM	12.800	INCH
Optimum Working Pressure	0.3	KG/CM3	4.5	PSIG
Consumption Per Hour	1.04	KGS	2.3	LBS
Rated Heat Output	11,500	KCAL/HR	45,600	BTU/HR
Gas	LPG / NATURAL GAS
